 Fireproof blanket have been widely used in many industries include shipbuilding,
construction, automotive parts, oil plants, flammable chemicals, and so forth.
Fireproof blankets can be fabricated in several shapes and sizes such as rectangle, square,
circle, triangle, and other custom-made shapes. Our standard sizes of fireproof blankets
shown below
| Materials |
Thickness
(m.m.)
|
W x L (m.) |
Temperature
(Celsius)
|
Remark |
| Silica (Gold) |
1.5 |
0.9x3, 0.9x5, 0.9x10, 0.9x15,
1.8x3, 1.8x5, 2.7x3, 2.7x5 |
900-1200 |
NON ASTESTOS |
| Silica (Gold) |
0.8 |
0.9x3, 0.9x5, 0.9x10, 0.9x15,
1.8x3, 1.8x5, 2.7x3, 2.7x5 |
900-1000 |
| Fiberglass (Gold) |
1.5 |
1x3, 1x5, 1x10, 2x3, 2x5,
2x10, 3x5, 4x5, 5x5 |
500-600 |
| Fiberglass (Gold) |
1.0 |
1x3, 1x5, 1x10, 1.5x3,
1.5x5, 2x3, 2x5, 3x3, 3x5 |
500-600 |
| Fiberglass (White) |
0.5 |
1x3, 1x5, 1x10, 1.5x3,
1.5x5, 2x3, 2x5, 3x3, 3x5 |
200-300 |
Welding & Fireproof Blankets

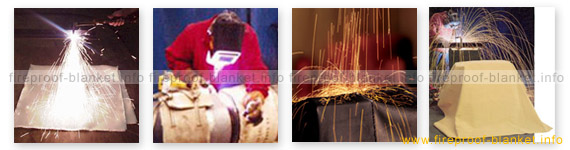

Newtech Insulation’s Welding Blankets provide protection from sparks, spatter and
slag generated by welding or metal-cutting applications. Our blankets are made to size
from a variety of heat-resistant materials.

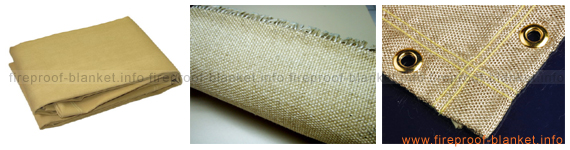

All fireproof fabric from Newtech Insulation can be made to measure or can be acquired
as roll stock. We are committed to solving our customers’ safety challenges. Our top-notch
customer service team has the knowledge and experience to help you make the right
decision today.
How to select the right welding blanket for the job
The proper selection of a welding blanket material depends on factors including durability,
melting temperature, weight, abrasion resistance and workability. The application helps
determine the right welding blanket for successful protection.
Materials to fit your needs:
| Fabric / Temperature |
150-450C |
450-600C |
600-1100C |
1100+ C |
| Fiberglass Eco |
√ |
|
|
|
| Fiberglass Standard |
√ |
√ |
|
|
| Wired Fiberglass |
√ |
√ |
|
|
| Waterproof Coated |
√ |
|
|
|
| High Silica (96% +) |
|
√ |
√ |
√ |
| Ceramic |
|
|
|
√ |
|
 |
| |
|
|
|
| |
|
|
|
